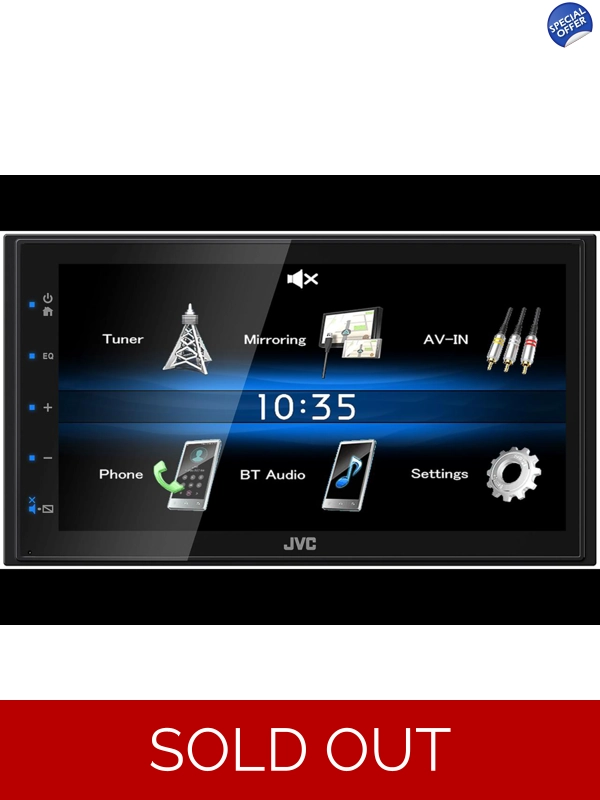

Mechless Double Din 6.8" Clear Resistive Touch Screen
• USB Android Mirroring
• FM Radio
• Bluetooth handsfree and audio streaming
• Short Body 1/2 DIN
• Direct iPod/iPhone Control
• REAR USB
• MP3/WMA/AAC/MPEG1-2-4 On USB
• Reverse camera input
• EQ 7
• High and low pass filters
• 3 X 2V Preout
• 1 AV input
• 1 x video output
• 1 Reverse camera Input
• 4 x 50W
• Steering wheel control ready

SPECIFICATIONS

Screen Size 6.8" Wide VGA
Touch Panel Capacitive with Printing
Key Illumination Color Blue
Multilingual Display
Media Playback
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with Tag USB
H.264 Compatible USB
MPEG 1/2 Compatible USB
MPEG 4 Compatible USB
AVI/MKV Compatible USB
JPEG File Playback USB
PNG File Playback USB
Bluetooth Control
Built-In Bluetooth (Version 4.2, Wired-Mic included)
Hands Free Call (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP)
Phone Book Access Profile (PBAP)
Android Control
Android Music Playback (via Bluetooth(R)
Mirroring for Android (via USB)
iPod/iPhone Control
iPod/iPhone Music Playback (via USB or Bluetooth(R)
USB
USB Port x1 (High Speed)
Position Rear
USB Power Supply (1.0A)
Radio Tuner
Radio Data System (1.0A)
Preset Stations 30 (6ch x 5band)
Automatic Presetting (1.0A)
FM Frequency Range 87.5-108.0MHz
AM Frequency Range (MW)531-1,611kHz
Audio
Maximum Power Output 50Wx4
Full Bandwidth Power 21W x 4
EQ (7-Band Graphic EQ)
Preset EQ (5 Presets + 1 user)
High-Pass Filter/Low-Pass Filter
Bass Boost
Inputs and Outputs
Pre-output Level/Impedance RCA x1
Video Out RCA
Pre-output Level/Impedance 2V / 10k ohms
Rear view camera input
Line Output Terminals 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
Rear view camera input
General
Shallow Chassis
Face Type Fixed
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready
Installation Size 182 x 52 x 117 (mm)
Unit weight in individual package 1.6kg
Weight 1.1kg : inlcuding sleeve and escutcheon
